Custom Explosion-Proof Motor

Explosion-proof motor is a specially designed motor designed to operate safely in hazardous environments where explosive gases, vapors or dusts are present. These motors incorporate a range of explosion-proof designs and technologies to ensure reliable operation in hazardous environments without causing fire or explosion.

Explosion-proof motors are commonly used in chemical plants, oil and gas processing plants, pharmaceutical plants, oil fields, tankers, mines and other flammable and explosive environments. The design of these motors takes into account the various hazards that may be present in the environment, including the penetration and accumulation of explosive gases, vapors and dusts. They typically have reinforced casings and seals to prevent hazardous materials from getting inside the motor, and special insulation and cooling systems to reduce internal temperatures. In addition, explosion-proof motors are equipped with specially designed explosion-proof junction boxes and wiring to ensure that the electrical system can still operate reliably under harsh conditions.

About

Who we are

Shanghai Pinxing Explosion-proof Motor Co., Ltd. is a high-tech enterprise specializing in the design, research and development, manufacturing, and service of motors and motor control products. We are Explosion-Proof Motor Manufacturers and Explosion-Proof Motor Suppliers.

Shanghai Pinxing is a AAA manufacturer of electrical equipment in China, specializing in the production of more than 1000 varieties of large and medium-sized high- voltage flameproof and increased safety explosion-proof motors, large and medium-sized high-voltage AC motors (including asynchronous, synchronous, frequency conversion and wound rotor motors), various types of small& medium-sized low-voltage explosion-proof motors, AC motors and so on. Our products are exported to more than 40 countries and regions at home and abroad which are widely used in the fields of coal mining, metallurgy, cement, paper making, environmental protection, petroleum, chemical, textile, road traffic , water conservancy, power, shipbuilding and other factories and enterprises. We are moving towards energy conservation, efficiency, environmental protection, integrated automation and internationalization. Shanghai Pinxing Explosion-proof Motor Co., Ltd aims to provide good motor products and motor technology solutions for global industrial enterprises and various fields, and make "Pinxing"motor become the motor technology solution provider and motor manufacturer in the global motor industry.

Pinxing.

  • Current employees
    0+

    It has more than 20 professional and technical personnel, 10 with intermediate and senior professional titles, including 5 senior engineers.

  • Factory area
    0

    It now has 3 wholly-owned subsidiaries, covering a total area of 120,000 square meters, and its production bases are located in Shanghai, Zhejiang and Jiangsu.

  • Motor type
    0+

    We specialize in the production of more than 1,000 varieties of various types of motors, with an annual production capacity of 7 million kilowatts.

Honor

Our Certificate

  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.
    ISO 14001
  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.
    CE
  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.
    Mining Product Safety Mark Certificate
  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.
    CNEX
  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.
    CNEX
  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.
    Intellectual Property Management System Certification
  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.

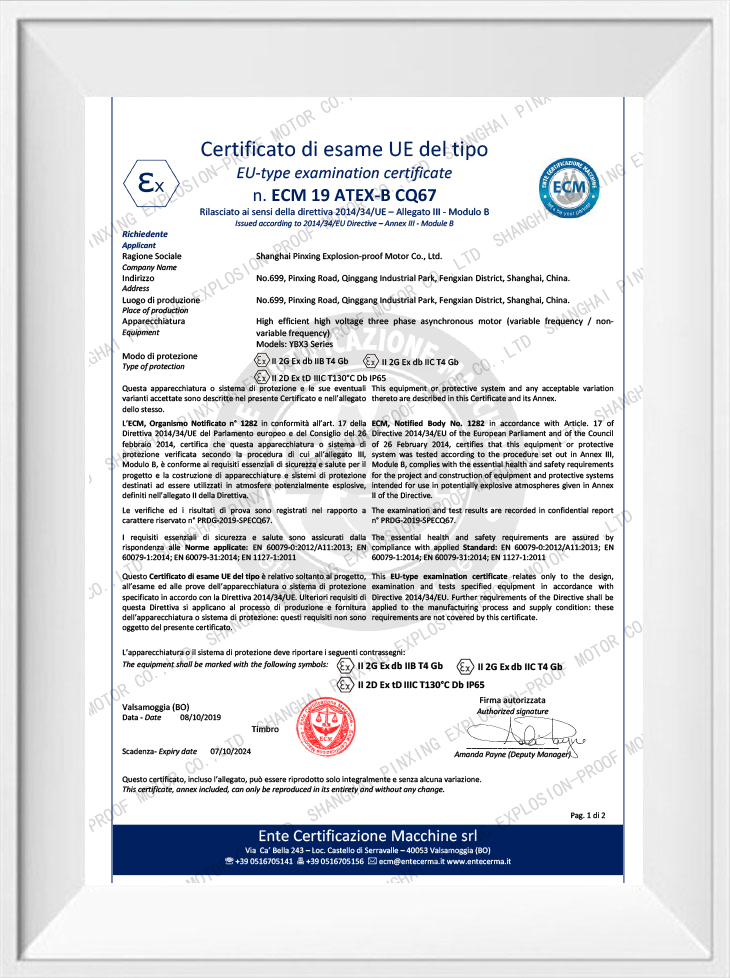

    ECM 19 ATEX-B CQ67
  • Shanghai Pinxing Explosion-proof Motor Co., Ltd. Shanghai Pinxing Explosion-proof Motor Co., Ltd.

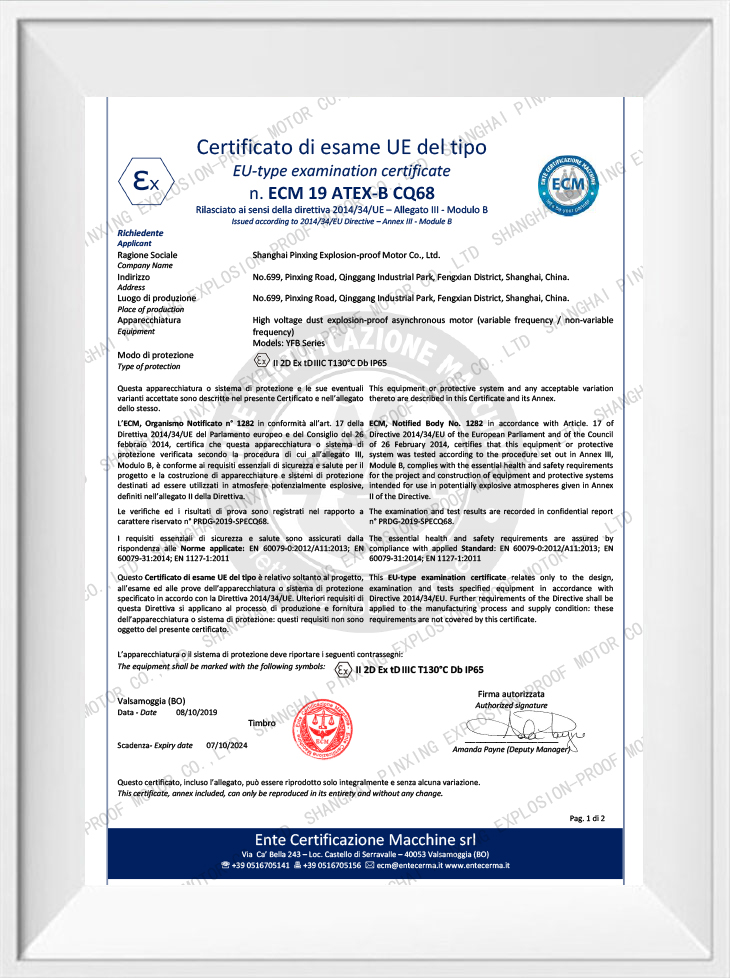

    ECM 19 ATEX-B CQ68
NEWS & UPDATES

Latest News

More About

Industry Knowledge Extension

What are the main categories of explosion-proof motors, and briefly describe the characteristics of each category?

The main categories and characteristics of explosion-proof motors are as follows:

Flameproof motor (Ex d):
Features: The shell of the flameproof motor can withstand the pressure generated by the explosion of the internal explosive gas mixture, and the flame and high-temperature gas generated by the explosion are extinguished or cooled through the joint surface gap of the shell, thereby preventing them from spreading to the outside of the motor. The design focus of this motor is on the strength and sealing of the shell, and it is suitable for high-risk and high-hazard explosive environments.

Increased safety motor (Ex e):
Features: Under normal operating conditions, the increased safety motor will not generate arcs, sparks or high temperatures that may ignite the explosive mixture, and its structure, ventilation, cooling system and electrical insulation have been enhanced to improve the overall safety performance. This motor is usually used in medium-risk explosive environments to reduce risks by increasing safety factors.

Positive pressure motor (Ex p):
Features: Positive pressure motors prevent explosive mixtures from entering the motor by continuously supplying clean air with a pressure higher than the surrounding environment. The housing and piping system of this type of motor need to maintain a certain positive pressure to ensure its explosion-proof performance. Positive pressure motors are suitable for enclosed spaces containing flammable and explosive gases or dusts, and explosions are prevented by positive pressure protection.

Non-sparking motors (Ex nA/nC):
Features: The design of non-sparking motors focuses on limiting the heat, arcs and sparks that may be generated by the motor during normal operation and fault conditions. This type of motor usually has a lower temperature rise limit, special electrical insulation and cooling system, and possible overload protection devices. Non-sparking motors are suitable for explosive environments with lower hazards, reducing the risk of explosion by reducing or eliminating the source of fire.

Dust explosion-proof motors (Ex tD):
Features: Dust explosion-proof motors are specially designed for environments containing combustible dust. They have special sealing structures, ventilation systems and electrical insulation to prevent dust from entering the motor and causing an explosion. The protection level of dust explosion-proof motors is usually higher to ensure continuous and safe operation in dusty environments.

What key factors should be considered when choosing an explosion-proof motor?

When choosing an explosion-proof motor, the following key factors should be considered:

1. Type of explosive hazardous environment

Gas, dust or steam: Determine the type of explosive substances present in the workplace in order to select a motor of the corresponding explosion-proof type.

Hazard level: Understand the hazard level of the explosive substance (such as Class I, Class II, etc.) and ensure that the explosion-proof level of the selected motor matches it.

2. Protection level

Dust and water resistance level: According to the humidity, dust and other conditions of the use environment, select the appropriate protection level (such as IP55, IP65, etc.) to ensure the protection capability of the motor. The protection level usually consists of two numbers, the first number indicates the dustproof level, and the second number indicates the water resistance level.

3. Power and speed

Power requirement: According to the power requirement of the load equipment to be driven, select a matching explosion-proof motor to ensure normal operation and work efficiency.

Speed ??requirement: Consider whether the speed of the motor matches the speed requirement of the load equipment to ensure the overall performance of the system.

4. Energy efficiency rating
Energy saving requirements: Selecting explosion-proof motors with high energy efficiency ratings will help reduce operating costs and energy consumption, and meet the requirements of green production and sustainable development.

5. Installation method
Actual installation conditions: According to the actual installation conditions and space limitations, select a suitable installation method (such as horizontal, vertical, etc.) to facilitate installation and maintenance.

6. Working temperature
Ambient temperature: If the working environment temperature is high or low, it is necessary to select an explosion-proof motor that can adapt to the corresponding temperature range to ensure its normal operation and service life.
